Optimizing Goods Receipt: WMS and WCS Collaboration Guide

WMS – WCS Workshop: Inbound Goods Receipt

Aligning Process Flows, System Boundaries, and Interfacing for Automation

Scope: Supplier Reception (Pallet AS/RS) | Objective: Alignment & Ownership

Workshop Agenda

1. Context & Assumptions (Scope, Automation triggers) <br> 2. Physical Inbound Flow (From Truck to AS/RS) <br> 3. System Roles (WMS vs WCS splitting) <br> 4. Message Exchange (Sequence & Data) <br> 5. Exception Handling (Blind receipts, Rejections) <br> 6. Summary & Next Steps

Scope & Assumptions: Pallet Inbound

<h3>IN SCOPE</h3><ul><li>Third-party supplier receipt of homogeneous pallets.</li><li>Cross-dock / Flow-through operations.</li><li>Handling of "Blind Receipts" (Missing ASN).</li><li>Pallet AS/RS induction via Conveyors & Scanning.</li></ul>

<h3>OUT OF SCOPE</h3><ul><li>Loose carton receiving / Mixed SKU pallets.</li><li>Detailed serial number tracking (at this stage).</li><li>Transport Management System (TMS) integration.</li><li>Non-automated storage areas.</li></ul>

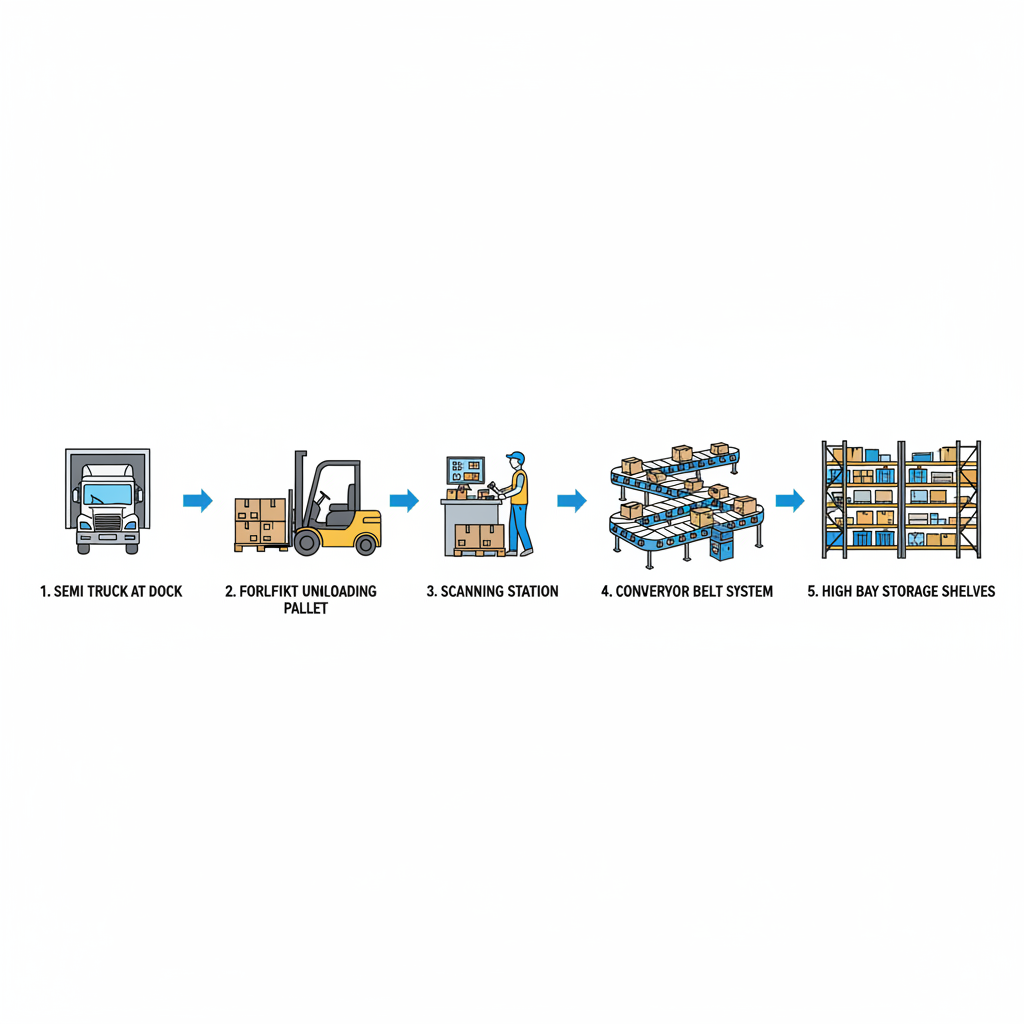

Physical Inbound Flow (No Systems)

Key Alignment: The physical movement drives the logical events.

1. Arrival & Docking &nbsp; ➔ &nbsp; 2. Unload & ID &nbsp; ➔ &nbsp; 3. AMR/Staging &nbsp; ➔ &nbsp; 4. Conveyor Induction &nbsp; ➔ &nbsp; 5. AS/RS Storage

System Responsibilities: WMS vs WCS

<strong>WMS (The Brain)</strong><br><br>• Owns Inventory & Receipts<br>• Validates Expected SKUs (ASN)<br>• Decides Quality Status (Q hold)<br>• Handles Business Exceptions<br>• Triggers 'Store' Command

<strong>WCS (The Muscle)</strong><br><br>• Controls Equipment (Conveyors, Cranes)<br>• Manages Routing Logic & traffic<br>• Reads Barcodes/RFID physically<br>• Reports Execution Feedback (Done/Fail)<br>• Handles Technical Faults

Responsibility Matrix (Sample)

Clarifying ownership for each inbound step.

Unload Truck & Identify Pallet

<span style='color:#3b82f6; font-weight:bold;'>WMS</span> (Mobile App)

Transport to Automation Induction

<span style='color:#64748b; font-weight:bold;'>WCS</span> (Via AMR fleet)

Validate Pallet Dimensions/Weight

<span style='color:#64748b; font-weight:bold;'>WCS</span> (Profile Check)

Determine Putaway Bin Location

<span style='color:#3b82f6; font-weight:bold;'>WMS</span> (Strategy Engine)

Message Exchange Sequence

<ol><li><strong>ASN / Pre-Advice</strong> (WMS has data)</li><li><strong>Scan / Arrival</strong> (WCS queries WMS)</li><li><strong>Validation</strong> (WMS confirms SKU/Qty)</li><li><strong>Induct</strong> (WCS tracks movement)</li><li><strong>Putaway Confirmed</strong> (WCS -> WMS)</li></ol>

Data Ownership & Source of Truth

<table style='width:100%; border-collapse:collapse; font-size:28px;'><thead><tr style='background:#1e293b; color:white; text-align:left;'><th style='padding:20px;'>Data Object</th><th style='padding:20px;'>Master Owner</th><th style='padding:20px;'>Consumer</th></tr></thead><tbody><tr style='border-bottom:1px solid #cbd5e1;'><td style='padding:20px;'><strong>Item Master / SKU</strong></td><td style='padding:20px;'>WMS (from ERP)</td><td style='padding:20px;'>WCS (for weight check)</td></tr><tr style='border-bottom:1px solid #cbd5e1;'><td style='padding:20px;'><strong>Bin Locations/Topology</strong></td><td style='padding:20px;'>WMS</td><td style='padding:20px;'>WCS (Mapped Coordinates)</td></tr><tr style='border-bottom:1px solid #cbd5e1;'><td style='padding:20px;'><strong>SSCC / Pallet ID</strong></td><td style='padding:20px;'>Supplier/WMS</td><td style='padding:20px;'>WCS (Tracking Key)</td></tr><tr style='border-bottom:1px solid #cbd5e1;'><td style='padding:20px;'><strong>Equipment Status</strong></td><td style='padding:20px;'>WCS</td><td style='padding:20px;'>WMS (Availability flag)</td></tr></tbody></table>

Note: WCS does not store inventory levels, only current location of a pallet ID.

Exception Scenarios: Inbound

Blind Receipt (Missing ASN)

Physical Profile Rejection

Pallet arrives, ID scan yields no result in WMS.<br><strong>Decision:</strong> Quarantine lane or Manual Entry Station?<br><strong>Action:</strong> Operator manual intervention required.

WCS detects pallet overhang or weight issue.<br><strong>Decision:</strong> Reject loop to rework station.<br><strong>Action:</strong> WCS updates WMS with 'Profile Error' status.

Workshop Discussion & Decisions

<strong>DECISIONS NEEDED:</strong><br><br>1. Process for Blind Receipts agreed?<br>2. Rejection Loop ownership validated?<br>3. Scan point location fixed?

<strong>PARKING LOT / OPEN POINTS:</strong><br><br>• [Placeholder for workshop notes]<br>• [Placeholder for workshop notes]<br>• [Placeholder for workshop notes]

Next Steps & Action Items

<ul><li>Draft Interface Control Document (ICD) - <strong>Week 2</strong></li><li>Validate Exception Flows - <strong>Week 3</strong></li><li>Interface Connectivity Test - <strong>TBD</strong></li></ul>

Project Lead: [Name]<br>Technical Architect: [Name]
