Determination of Surface Tension of Water

Capillary Rise Method | Undergraduate Physics Laboratory

clean scientific close-up photography of water in a glass capillary tube forming a meniscus, laboratory lighting, high definition, blue and white tones

Made by

Theory: What is Surface Tension?

Surface tension (T) is a property of liquid surfaces that allows them to resist an external force. It arises due to the cohesive nature of liquid molecules.

Key Concepts:
• Cohesion: Attraction between like molecules (water-water).
• Adhesion: Attraction between unlike molecules (water-glass).
• In a capillary tube, adhesion > cohesion, causing the water to rise and form a concave meniscus.

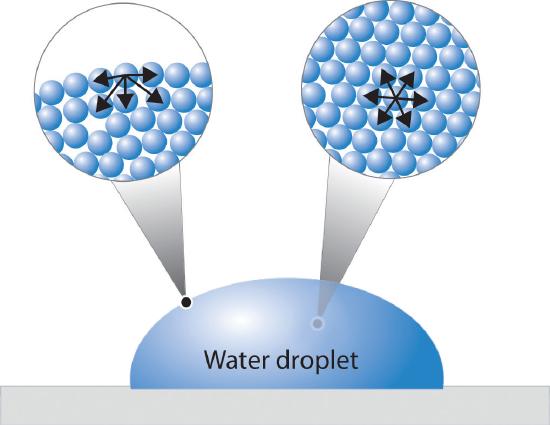

diagram showing molecular forces in a liquid, forces on surface molecules vs bulk molecules, scientific illustration

Made by

Apparatus Required

Capillary Tubes: Fine uniform bore glass tubes.
Traveling Microscope: For precise height measurement (0.001 cm precision).
Adjustable Stand: To hold the capillary tube vertical.
Beaker & Pointer: Clean glass beaker and an index pin.
Thermometer: To record experimental temperature.
Cleaning Agents: Chromic acid or Nitric acid, distilled water.

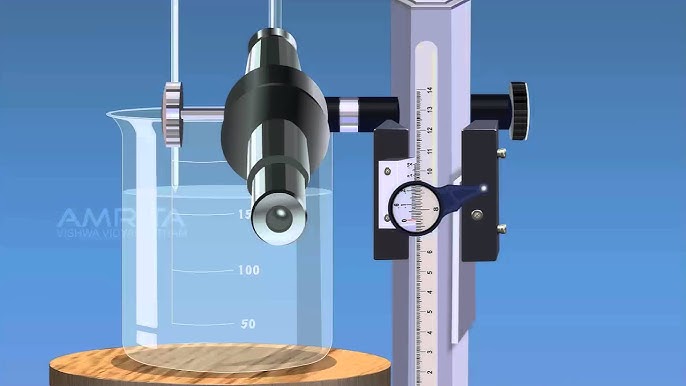

physics laboratory travel microscope setup with capillary tube and beaker

Made by

Theory: Jurin's Law

T = (r h ρ g) / (2 cosθ)

Where:
T = Surface Tension (N/m)
h = Height of liquid rise (m)
r = Radius of capillary bore (m)
ρ = Density of liquid (kg/m³)
g = Acceleration due to gravity (9.8 m/s²)
θ = Angle of contact

Assumption: For a clean glass-water interface, the angle of contact θ is extremely small (≈ 0). Thus, cosθ ≈ 1.

Made by

Force Balance Derivation

1. Upward Force due to Surface Tension:
Surface tension T acts tangentially to the meniscus along the circumference (2πr). The vertical component upward is:

F_up = (T cosθ) × (Circumference)
F_up = 2πr T cosθ

2. Downward Force (Weight of Column):
The weight of the liquid column of height h is mass × gravity. Mass = Volume × Density.

Volume = πr²h
W = πr²h ρ g

At Equilibrium: F_up = W
2πr T cosθ = πr²h ρ g

Solving for T:
T = (r h ρ g) / 2 cosθ

Made by

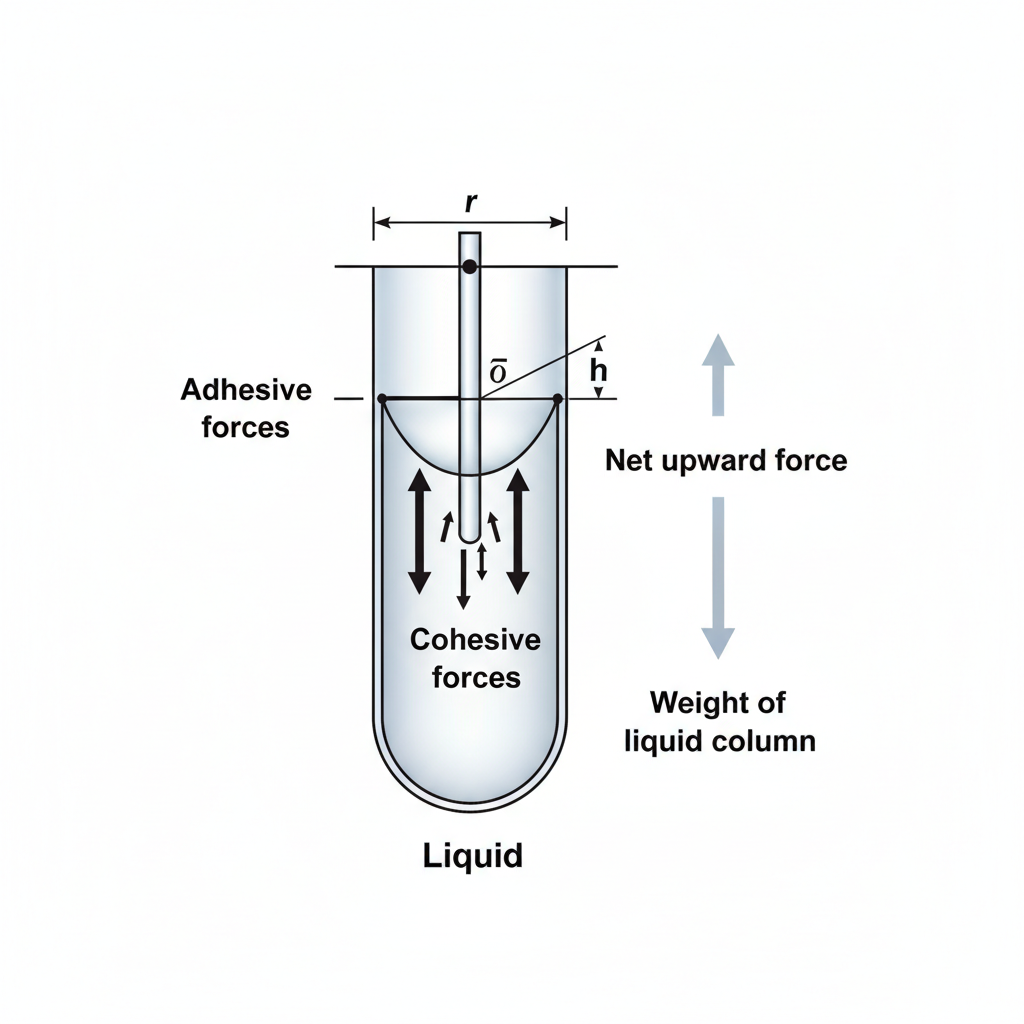

Diagram: Forces & Geometry

diagram of capillary rise, showing forces, angle of contact theta, meniscus curvature, height h, and radius r, scientific textbook style, white background

• θ: Contact angle
• h: Height of rise
• T: Surface Tension vector
• mg: Weight vector

Made by

Procedure: Setup & Cleaning

1. Clean the Capillary: Wash the capillary tube with chromic acid or nitric acid to remove grease, then rinse thoroughly with distilled water. Caution: Grease alters the contact angle.

2. Clamp Vertically: Clamp the capillary tube on the adjustable stand. Ensure it is perfectly vertical using a plumb line if available.

3. Liquid Setup: Fill a beaker with distilled water. Place it on the stand such that the capillary tube dips into the water. Adjust a pointed index pin (pointer) so its tip just touches the water surface outside the tube.

person cleaning laboratory glassware with safety gloves, science lab setting

Made by

Procedure: Measurement

Focus Telescope: Focus the traveling microscope on the meniscus of the water in the capillary tube. Align the horizontal cross-wire ensuring it is tangent to the meniscus curve. Record Reading (A).
Focus on Pointer: Lower the microscope to focus on the tip of the pointer touching the water surface. Record Reading (B).
Calculate h: Rise in capillary, h = Reading A - Reading B.
Find Radius (r): Cut the tube at the meniscus level (or use method to focus on edges). Measure internal diameter in two perpendicular directions using the microscope cross-wires. Calculate mean radius.

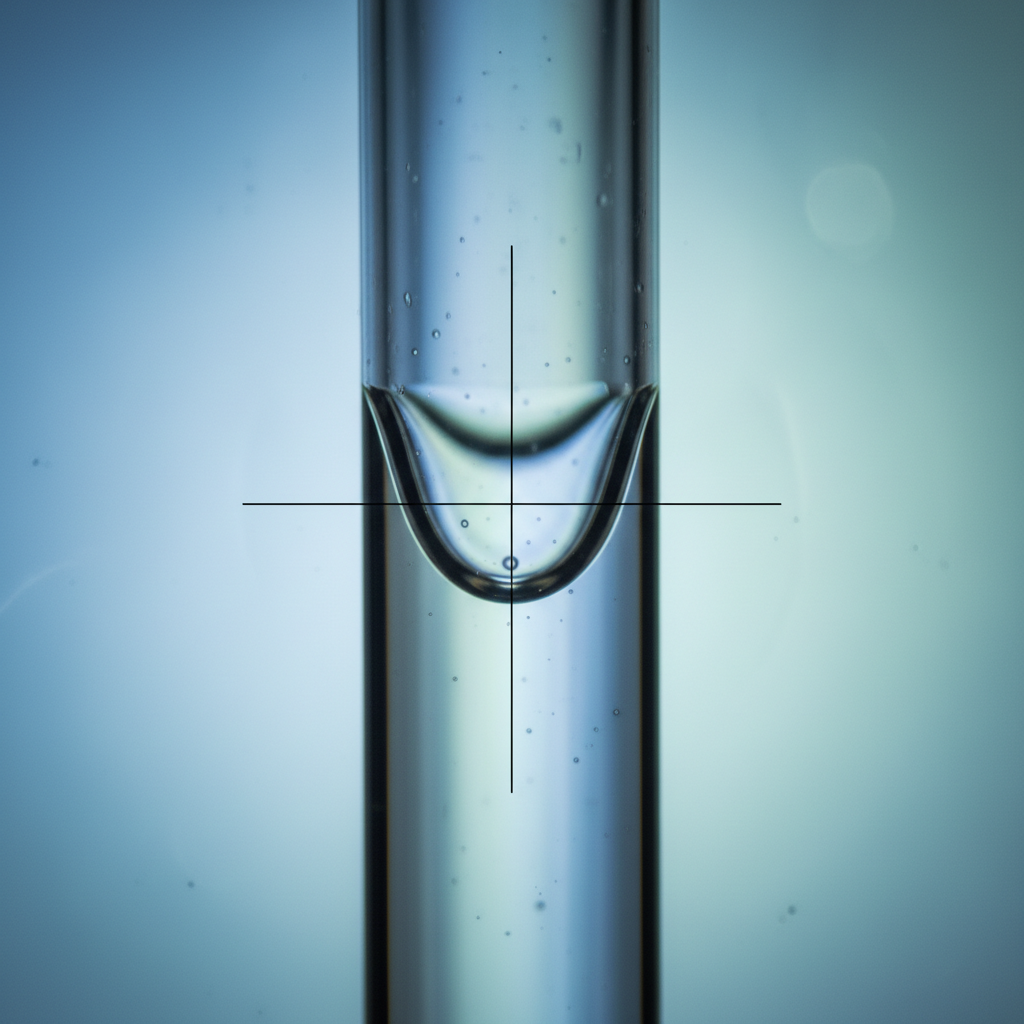

view through a microscope of a water meniscus in a glass tube with crosshair overlay

Made by

Precautions & Sources of Error

warning icon or lab safety symbol, simple, blue and white, minimal vector style

Cleanliness is Crucial: Presence of oil or grease drastically changes the surface tension.
Vertical Alignment: The capillary tube must be perfectly vertical to ensure a uniform meniscus.
No Air Bubbles: Ensure the liquid column contains no air bubbles.
Parallax Error: Avoid parallax when reading the microscope scale.
Temperature Stability: Surface tension decreases with temperature; minimize fluctuations during the experiment.

Made by

Observations & Calculation

S.No	Microscope Reading Meniscus (cm)	Microscope Reading Pointer (cm)	Height h = Difference (cm)	Radius r (cm)	Surface Tension T (dynes/cm or N/m)
1	...	...	...	...	...
2	...	...	...	...	...
3	...	...	...	...	...

Calculate Mean T:
1. Compute T for each trial using T = (rhρg)/2.
2. Take the average of calculated T values.
3. Ensure units are consistent (CGS: dynes/cm, SI: N/m).

Made by

clean abstract water ripple background, high key lighting, physics and nature concept

Conclusion

The surface tension of water at room temperature was determined to be approximately 72.8 mN/m (at 20°C).

The experiment validates that measurement precision (especially of the hair-thin capillary bore radius) is critical for accurate results.

Height (h) is inversely proportional to radius (r).
