Project GreenView: Regulatory Compliance Analysis

Code Compliance Review for Residential Public Housing (HDB) Scope: Ventilation, Parking, Fire Safety, Shelter, & Accessibility

Jurisdiction: Singapore (BCA, URA, SCDF)

Project Status: Submission Ready

Photorealistic architectural rendering of a modern Singapore HDB public housing building facade with lush vertical greenery, clear blue sky, high quality 8k resolution

Made by

1. Natural Ventilation Requirements

REFERENCE: BCA Approved Document (Section I) REQUIREMENT: Natural ventilation openings must be ≥ 5% of the floor area for habitable rooms. WORKED EXAMPLE (Living Room Type A): - Room Area: 30.0 m² - Required Opening: 1.5 m² (5%) - Provided Window Area: 3.2 m² - STATUS: COMPLIANT

Interior architectural photograph of a bright, airy HDB living room with large open windows, sunlight streaming in, modern minimalist furniture

Made by

1. Mechanical Ventilation (Service Areas)

Modern bathroom interior design, focus on ceiling ventilation fan, clean white tiles, glass shower screen, architectural photography style

REFERENCE: SS 553 & NEA Guidelines REQUIREMENT: Internal toilets/bathrooms without natural ventilation openings must have mechanical exchange. WORKED EXAMPLE (Master Bath): - Location: Internal (No facade access) - Requirement: Min 15 Air Changes per Hour (ACH) - Equipment: Ceiling-mounted exhaust fan connected to vertical duct. - STATUS: COMPLIANT

Made by

2. Parking Provision Calculation

Calculated based on Range-based Parking Provision Standards (RPPS) for Zone 2 (Residential).

Chart

Made by

2. Parking Layout Dimensions

STANDARD CAR LOT (Perpendicular): - Length: 4.8m - Width: 2.4m - Min. Aisle Width (2-way): 6.0m WORKED EXAMPLE (Deck 1): - Grid spacing allows 3 lots between columns. - Clear height verified at 2.2m. - Column clearance > 300mm from lot boundary.

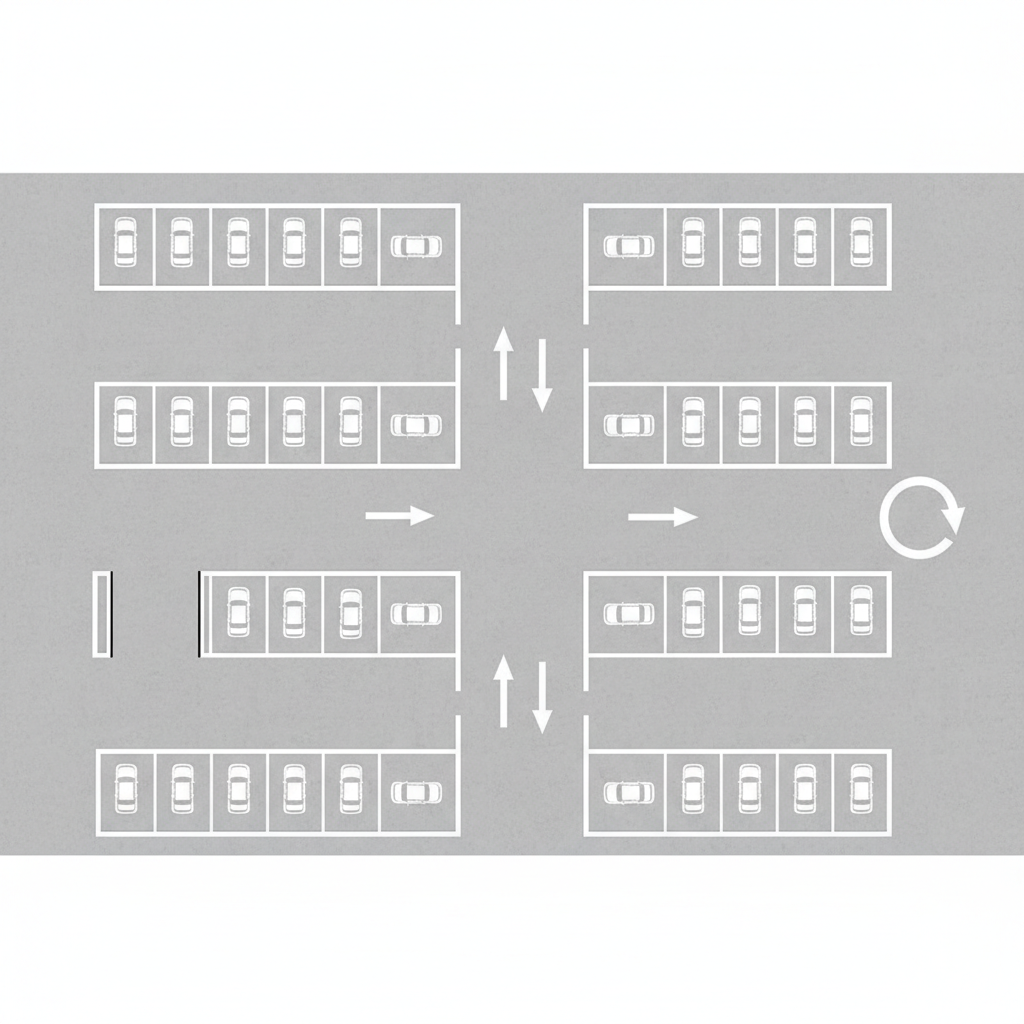

Top-down diagrammatic render of an indoor concrete car park layout showing white line markings for parking lots and a driving aisle, high contrast, clean lines

Made by

3. Staircase Storey Shelter (S/C SS) Setback

REGULATION: SCDF Technical Requirements for Storey Shelters The S/C SS (Civil Defence Shelter location) requires a minimum setback distance from the building facade or other structures to ensure the exit remains passable if adjacent structures collapse.

External view of a reinforced concrete staircase blast shelter tower attached to an HDB building, heavy industrial aesthetic, safety architecture overlay

Made by

3. Measuring S/C SS Setback

WORKED EXAMPLE (Block A): - Hazard Height (Adjacent Structure): 15m - Setback Formula: Based on Fall Distance Radius. - Required Setback: 2.0m minimum (Subject to height/fall zone calculations). PROJECT COMPLIANCE: - Actual setback provided: 6.0m via landscaped void deck. - Result: PASS (Outside potential collapse zone).

Technical diagram schematic overlaid on a photo, showing a building setback distance arrow from a reinforced shelter to the property boundary, indicating 6 meters distance

Made by

4a. Travel Distance: Roof Terrace

CODE: Fire Code 2018 (SCDF) SCENARIO: Roof Garden (Occupied Space) to Exit Staircase. MEASUREMENT RULE: Measured from the most remote point of the roof garden, along the natural path of travel, to the door of the exit staircase. EXAMPLE DATA: - Building Status: Sprinklered - Max Allowance: 60m (Code Limit) - Actual Path Measured: 48.5m - STATUS: COMPLIANT

Rooftop terrace garden on a high rise building at sunset, walking path leading to a marked fire exit door

Made by

4b. Travel Distance: Residential Unit

CODE: Fire Code 2018 (SCDF) SCENARIO: One-way escape travel within a residential apartment unit. MEASUREMENT RULE: Measured from the furthest point (usually the corner of the Master Bedroom) to the main access door of the unit. EXAMPLE DATA (5-Room Flat): - Single exit door situation. - Max Allowance: 20m - Measured Distance (Bedroom corner -> Corridors -> Hall -> Door): 16.5m - STATUS: COMPLIANT

Interior perspective from a bedroom looking down a hallway towards a front door in a modern apartment, symbolizing exit route

Made by

5. Accessibility: Unit Entrances

REQUIREMENT (BCA Code on Accessibility): Barrier-free entry for wheelchair users.

1. THRESHOLD: Maximum height 25mm. If higher, a ramp is required.
2. CLEAR OPENING: Minimum 850mm effective clear width.
3. MANOEUVRING SPACE: Clear space provided adjacent to the door handle for wheelchair access.

Close-up render of a modern apartment door threshold showing a flat, barrier-free entrance with a wide doorframe, wheelchair accessible design

Made by
