VVIP Villa Telecom & Security Systems Report - Angola
Explore a comprehensive IT and security system design for a VVIP Villa in Luanda, covering home automation, Dolby Atmos cinema, and advanced CCTV surveillance.
Villa AV5652 Telecom Systems
IT, ELV & Security Systems Report
January 2026
Luanda, Angola
Project Overview

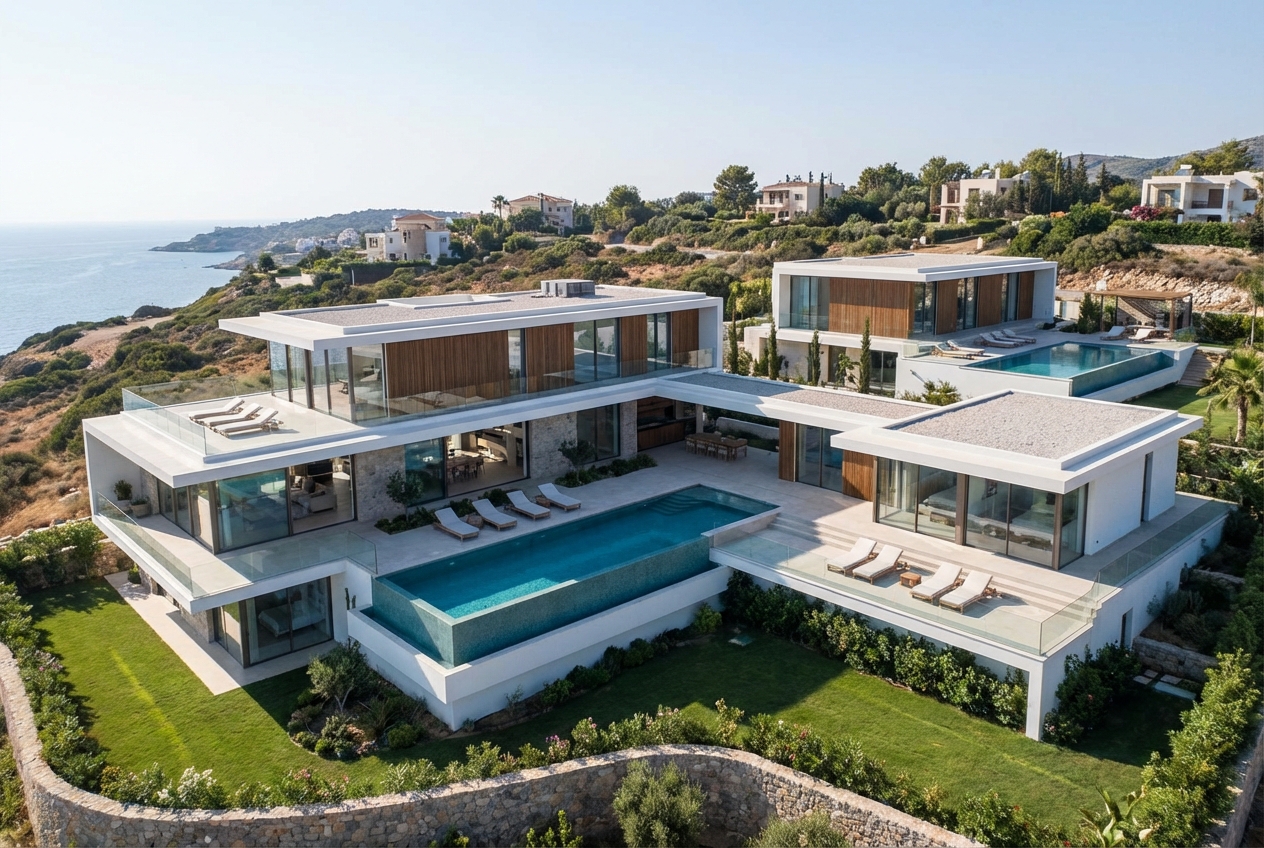

VVIP Villa AV5652 - Fully Integrated Home Automation Ecosystem
Main Villa: Basement, Ground Floor, First Floor & Roof
Guesthouse: Multi-level structure with MEP zone
Common BOH Basement: Support services & landscape functions
Scope of Work
Integrated Systems Architecture
Lighting Control
Background Music (BGM)
Audio Distribution
Home Cinema
Environmental Automation
CCTV & Security Systems
Centralized, scalable platform ensuring seamless interoperability and future-proof expandability
Background Music System
75-85 dB(A)
70-80 dB(A)
±6 dB
Invisible ceiling speakers for premium living areas
Flush mount speakers for service areas
Weather-resistant landscape speakers for outdoor zones
Multi-zone audio matrix with DSP processing
Home Automation System
Four Independent Control Zones
Main Villa
Guest House
Bunkers
Cinema
DALI (IEC 62386) - Dimmable lighting control
KNX - On/off switching & manual override
DMX512 over IP - RGB/RGBW decorative lighting
BACnet/IP - HVAC integration

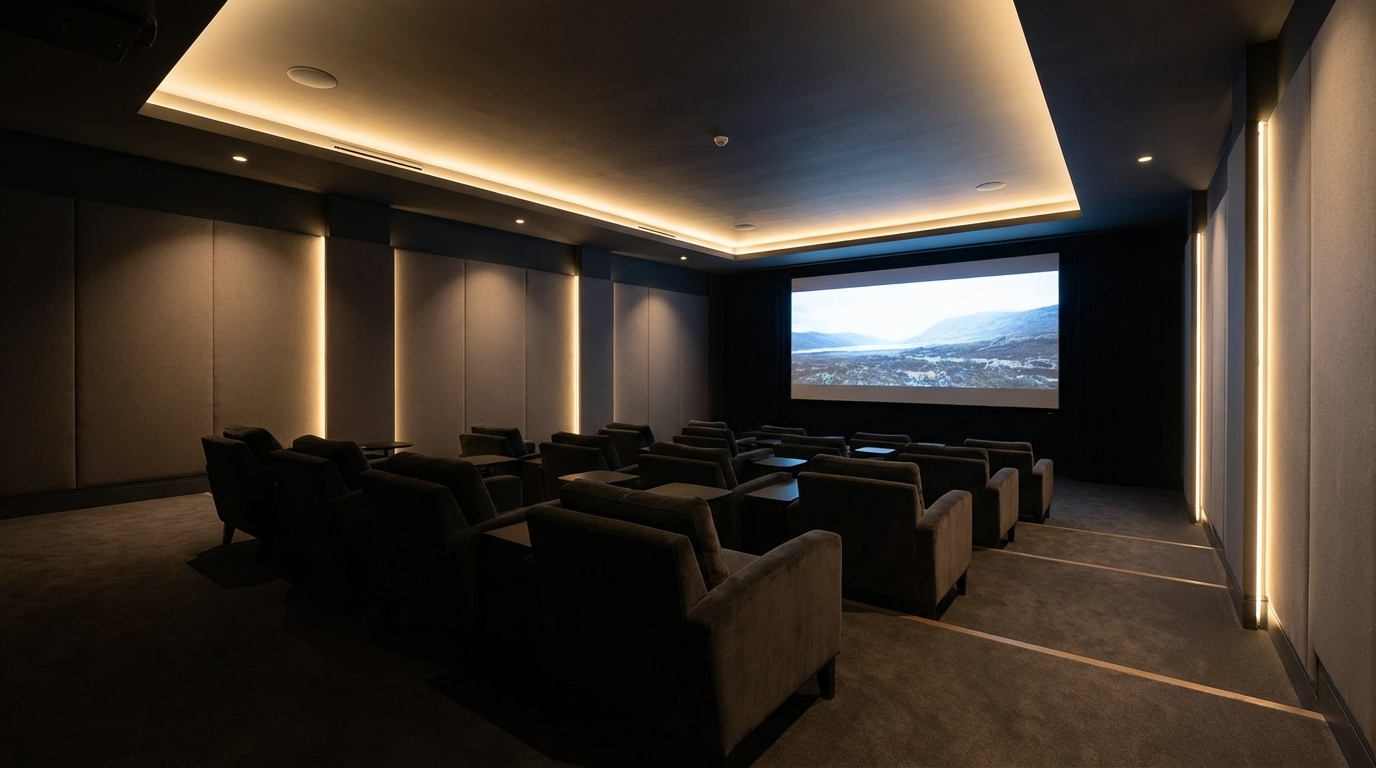

Home Cinema System
130-inch
Micro LED Display
Dolby Atmos 7.1.4
True black levels with superior contrast ratio
HDR10 and HLG high dynamic range support
3 L/C/R screen channel speakers for front stage
4 Atmos ceiling speakers for immersive 3D sound
Acoustic treatment with panels and bass traps
CCTV Surveillance System
255
31 Days
147 Fixed Indoor Dome Cameras (4MP)
84 Fixed Outdoor Bullet Cameras (4MP)
13 Fixed Indoor Dome Cameras (5MP)
6 Outdoor PTZ Cameras (4MP)
5 Elevator Dome Cameras (3MP)
H.265/H.264 compression for optimized storage
RAID 6 redundancy for fault tolerance
Access Control System
Multi-Layer Authentication Architecture
High-Security Zones
Dual Face Recognition (Entry & Exit)
Command Center, CCTV Room, Arms Room, Kitchen
Technical Areas
Face Recognition + Push Button Exit
Telecom Rooms, Electrical Rooms
Staff Areas
RFID Card Reader + Free Handle
Offices, Storage, Mechanical Rooms
Guest Zones
Wireless Smart Locks
Hotel Rooms - Mobile & Card Credentials
Security Infrastructure
Video Intercom System
IP-based door stations at VIP entrance, guest entrances, and loading bay with master stations in control rooms
Screening System
Walk-through metal detectors, X-ray baggage scanners, handheld scanners, and vehicle backscatter scanners
Parking Control System
Automatic barriers, submersible road blockers, and LPR cameras at all vehicle entry points
Duress Alarm System
Panic buttons, pull cords, and foot rails in high-risk areas with silent alarm transmission to control room
Control Rooms
Security Control Room (BS-128)
3x2 Video Wall for real-time CCTV monitoring
Dual-monitor operator workstations
BMS and Fire Alarm monitoring desk
ID card badging and report printers
CCTV Control Room (BS-101)
3 fully equipped operator workstations
Large wall-mounted display screens
Continuous surveillance operations
Incident documentation and video review
Network Infrastructure
Distributed Telecom Architecture
Main Telecom Room (BS-118)
Core switch, servers, storage, and 10x 42U equipment racks
Villa TL Room B1 (BS-27)
Bunker TL Room (BS-24)
Guest TL Room GF (GF-57)
Villa TL Room GF (GF-06)
Telecom Room FF (FF-38)
12-core Single Mode Fiber Optic Uplinks
CAT6A Shielded Twisted Pair - TIA/EIA-568 Compliant
Compliance & Standards
Audio Visual Standards
ANSI/AVIXA A102.01:2022 - Audio Coverage Uniformity
ANSI/CEA/CEDIA CEB22-B - Home Theater Design
Security Standards
BS EN 62676 - Video Surveillance Systems
BS EN 50133 - Access Control Systems
Network & Safety
IEEE 802.3af/at/bt - Power over Ethernet
ISO/IEC 27001 - Information Security Management
Vehicle Security
PAS 68/69 - Vehicle Security Barriers
IWA 14-1 - Impact Test Standards
Key Recommendations
Proceed with Implementation
The design meets all international standards and best practices for VVIP residential environments. Proceed with construction phase coordination.
Integrated Testing Protocol
Implement comprehensive system integration testing to ensure seamless interoperability between AV, automation, and security subsystems.
Training Program
Establish operator training for Security Control Room and CCTV Room personnel covering all integrated systems and emergency procedures.
Maintenance Contracts
Secure long-term maintenance agreements for critical infrastructure including CCTV storage, access control, and network equipment.
Thank You
Villa AV5652 Telecom Systems Report
Questions & Discussion
Detailed technical specifications available upon request
