Little Man Computer (LMC)

A Beginner's Guide to Computer Architecture & Assembly Programming

Computer Science Fundamentals

What We'll Cover

A step-by-step journey through the architecture, instruction set, and programming of the LMC.

What is the Little Man Computer?

LMC Architecture Overview

The Instruction Set

Memory & Registers

How Programs Execute

Writing LMC Assembly Programs

Example Programs (Add, Subtract, Loops, Conditionals)

LMC vs Real CPUs

What is the Little Man Computer?

Educational Model

Created by Dr. Stuart Madnick in 1965 as a simplified model to teach computer architecture.

Fundamental Concepts

Designed to teach how CPUs work at a foundational level with a simple assembly-like instruction set.

Von Neumann Architecture

It accurately models real computer architecture in an accessible, simple way.

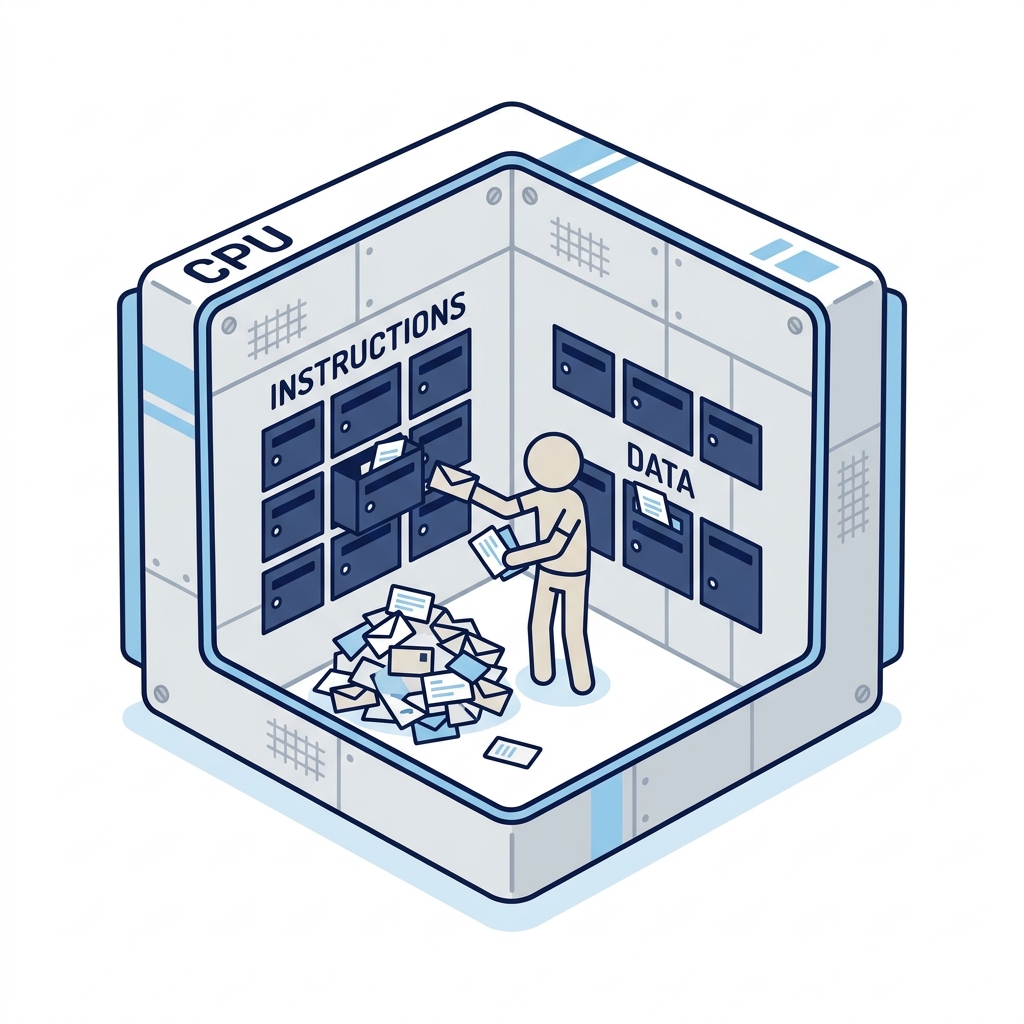

The “Little Man” Metaphor

Imagine a tiny man inside the computer fetching, reading, and executing instructions.

Computer Science Fundamentals

LMC Architecture Overview

A conceptual diagram of the Little Man Computer's key components and data flow.

Computer Architecture Fundamentals

Memory & Registers

Memory (Mailboxes)

100 mailboxes numbered 00–99

Each stores a 3-digit number (000–999)

Holds both instructions AND data

Addressed by a 2-digit number

Registers

Accumulator (ACC)

Main working register, stores results

Program Counter (PC)

Points to the next instruction address

Instruction Register (IR)

Holds the currently executing instruction

901

399

042

911

The LMC Instruction Set

Mnemonic

Opcode

Description

The Fetch-Decode-Execute Cycle

A step-by-step deep dive into how the Little Man Computer processes instructions.

FETCH

The Little Man looks at the Program Counter, goes to that mailbox, and picks up the instruction. PC increments by 1.

DECODE

The instruction is placed in the Instruction Register. The Little Man figures out what to do (which operation and which address).

EXECUTE

The Little Man carries out the instruction (e.g., adds a number, stores a value, jumps to a new address).

This cycle repeats until a HLT instruction is reached.

Computer Architecture • Instruction Cycle

Writing LMC Programs — The Basics

Programs are written as a list of mnemonics (one per line)

Labels can be used to name memory addresses (e.g., NUM DAT 5)

Instructions are assembled into 3-digit opcodes in memory

Programs start executing from address 00

Always end with HLT

Computer Science Fundamentals

Example 1: Add Two Numbers

LMC Program Code

INP STA FIRST INP ADD FIRST OUT HLT FIRST DAT

Input: 5, 3 → Output: 8

Example 2: Subtract Two Numbers

A worked example showing an LMC program that reads two numbers and outputs the difference (first minus second).

INP STA FIRST INP STA SECOND LDA FIRST SUB SECOND OUT HLT FIRST DAT SECOND DAT

Input: 10, 4 → Output: 6

Example 3: Counting Loop

User inputs a number (e.g., 3)

Store it in COUNT

Load COUNT into ACC

Output ACC

Subtract 1 from ACC

Store back in COUNT

If ACC = 0, jump to END (BRZ)

Otherwise, go back to LOOP (BRA)

HLT when done

Output for input 3: "3, 2, 1" then stops.

Branching & Conditionals in LMC

BRA (Branch Always)

Unconditional jump

Always goes to the given address

Used for:

loops

BRZ (Branch if Zero)

Jump only if ACC = 0

Used for:

checking equality, loop termination

Equivalent to:

if (acc == 0) goto label

BRP (Branch if Positive)

Jump only if ACC ≥ 0

Used for:

checking if a number is positive or not negative

Equivalent to:

if (acc >= 0) goto label

Tip:

Negative numbers in LMC are represented using values > 500 (two's complement style)

LMC vs Real CPUs — A Comparison

LMC

Real CPU

Memory

100 mailboxes (3-digit)

Billions of bytes (RAM + Cache)

Registers

1 (Accumulator)

Dozens (general-purpose, special)

Instruction Set

~10 simple instructions

Hundreds of instructions (CISC/RISC)

Addressing

Simple 2-digit address

Complex modes (direct, indirect, base+offset)

Data Size

3 digits (000–999)

32-bit or 64-bit integers and beyond

I/O

Simple IN/OUT

Complex device drivers and buses

Clock Speed

N/A (conceptual)

Billions of cycles per second (GHz)

Purpose

Teaching / Learning

Real-world computation

Despite its simplicity, LMC demonstrates ALL the core principles of real computer architecture: fetch-decode-execute, registers, memory addressing, and branching.

Key Takeaways

LMC is a simplified model of a Von Neumann computer — great for learning

Memory = 100 mailboxes; each stores a 3-digit number (data or instruction)

Only one register: the Accumulator (ACC), used for all calculations

The Fetch-Decode-Execute cycle is how every instruction is processed

~10 simple instructions: ADD, SUB, LDA, STA, INP, OUT, BRA, BRZ, BRP, HLT

LMC bridges the gap between high-level programming and real hardware

Try writing your own LMC programs at: peterhigginson.co.uk/lmc/ or cpulator.01xz.net
