Synergy Vision: 4K Surgical Visualization for Surgeons

How Synergy Vision Can Benefit You and Your Patients

A New Era in Surgical Visualization

10-Minute Overview for General Surgeons

Presented by Arthrex

1991

Founded

#1

Global Arthroscopy Company

130+

Countries Served

10,000+

Products

ABOUT ARTHREX

Who Is Arthrex?

A privately-owned medical device company headquartered in Naples, Florida

Global leader in orthopedic surgical solutions — now expanding into general surgery

Mission: "Helping Surgeons Treat Their Patients Better"

Known for surgeon-driven innovation: over 1,000 new products launched annually

Trusted by surgical teams in hospitals and ASCs worldwide

The Problem With Standard HD Visualization

What are general surgeons missing with conventional systems?

Limited Image Clarity

Standard HD lacks depth perception and color accuracy — critical structures may appear flat or washed out

Hot Spots & Shadows

Inconsistent illumination creates glare and dark zones, obscuring tissue planes and vessels

Siloed Equipment

Multiple separate devices (camera, light source, recorder) create setup complexity and OR inefficiency

There is a better way to see.

4x

More clarity than HD

64x

Greater color depth

10-bit

Color processing

True 4K

3840x2160 resolution

VISUALIZATION ADVANTAGE

True 4K Imaging & HDR

See More. Miss Less.

Identify fine tissue planes, vessels, and nerves with unprecedented clarity

HDR eliminates bright spots and dark shadows for uniform illumination

10-bit color processing delivers superior depth perception

Critical for detecting subtle anatomy during minimally invasive procedures

Surgeons report seeing structures previously missed with standard HD

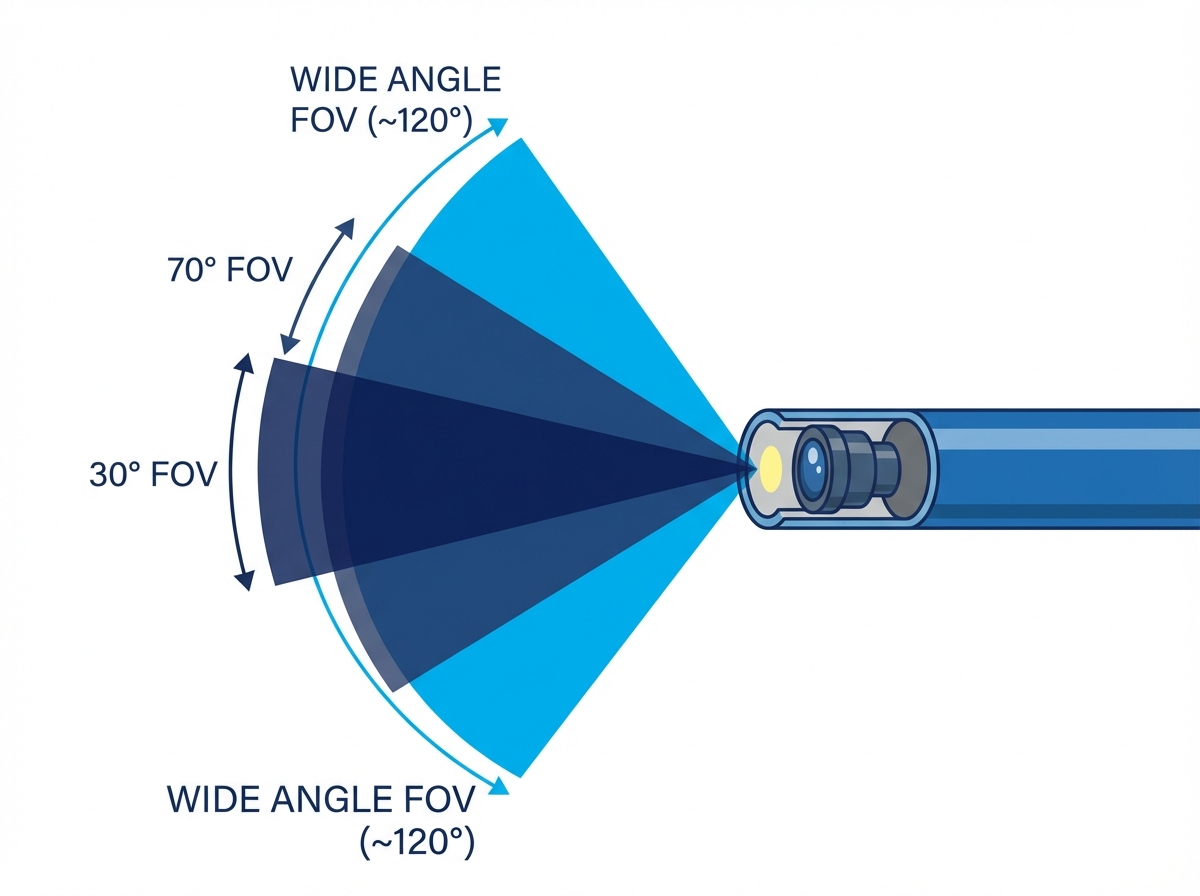

Pano™ Scope — One Scope, Multiple Perspectives

Instant Angle Switching

Toggle between 30°, 70°, and ultrawide views on a single screen without changing instruments

Reduce Portal Requirements

Wider field of view means fewer entry points for the patient

Keep Critical Structures in View

Ultrawide mode maintains cartilage and surrounding anatomy visible during procedures

Teaching & Training

Panoramic view ideal for OR education and surgical demonstration

"See the full picture — without changing your scope."

FLUORESCENCE IMAGING

Synergy Vision's built-in NIR fluorescence mode opens a new dimension of intraoperative visibility

Toggle between standard 4K and NIR fluorescence mode with one button — no scope change required

ICG (indocyanine green) perfusion imaging — evaluate anastomotic blood flow to reduce leak risk

Biliary visualization — clearly identify the common bile duct, cystic duct, and hepatocystic triangle during cholecystectomy

Lymph node mapping — identify sentinel and regional nodes to improve oncological staging

Tissue perfusion assessment — confirm bowel viability before and after resection

Compatible with FDA-cleared fluorescent agents including ICG and CYTALUX® (pafolacianine)

OR Integration & Workflow Efficiency

Synergy Vision is built to simplify your OR — not complicate it

Tablet Control

Control all system settings — brightness, camera, recording — from a wireless tablet. No need to break scrub.

Wi-Fi & Livestreaming

Stream live surgical footage for teaching, remote consultation, or case review. Built-in photo and video capture.

PACS / EHR Export

Direct export of surgical images and video to hospital PACS and EHR systems for seamless documentation.

One system. Zero compromise on workflow.

PATIENT OUTCOMES

Benefits for Your Patients

Safer Procedures

Better visualization reduces inadvertent injuries to vessels and critical structures

Fewer Entry Points

Pano scope reduces the number of portals and incisions required

Reduced Anastomotic Leaks

NIR/ICG perfusion validates bowel anastomosis blood supply intraoperatively

Cancer Detection

Fluorescence imaging identifies tumours invisible to white light alone

Faster Recovery

Improved precision supports minimally invasive approaches and shorter OR time

“Seeing more means doing more — for your patients.”

19%

more lung lesions detected

27%

more ovarian cancers found

Phase II

trials show reduced anastomotic leak rates with NIR/ICG

Benefits for You as a Surgeon

Synergy Vision is designed around how surgeons think and operate

Unmatched Visual Clarity

4K HDR imaging reveals what HD cannot — giving you the confidence to operate with precision

Intuitive, Distraction-Free Control

Wireless tablet control and a simplified interface lets you stay focused on the patient, not the technology

Dual Display Capabilities

Picture-in-picture 4K + NanoNeedle Scope views simultaneously — see macro and micro anatomy at once

Reputation & Teaching

High-quality video capture and livestreaming supports surgical education, peer review, and professional development

Hardware Built for the OR

Titanium

Camera Head Construction

7-Year

Autoclave Warranty

Sterilizable

Full Autoclave Compatibility

24/7

Arthrex Technical Support

RELIABILITY & PARTNERSHIP

Built to Last — Durability & Support

Titanium camera heads designed to withstand the rigors of daily surgical use

7-year autoclave warranty — the longest in the industry

Fully sterilizable for compliance with OR infection control protocols

Dedicated Arthrex field support team available for installation, training, and troubleshooting

Ongoing in-servicing for surgical staff and scrub techs

Regular software updates and system enhancements included

You invest in the best for your patients — we make sure it keeps performing.

Real-World Impact — What Surgeons Are Saying

The optics are unlike anything I've used before — I can see the smallest structures with clarity I didn't think was possible.

— Skull Base & Sinus Surgeon, Early Adopter

Synergy Vision has transformed how we approach oncological resections. The fluorescence capability is a genuine game-changer.

— Thoracic Surgeon, NCH Naples

World's First

Cancer Illumination™ Procedure (Sept 2024)

Reduced

Anastomotic Leak Risk with NIR/ICG perfusion

Adopted

By hospitals and ASCs across 130+ countries

How We Support Your Team

From installation to daily use — Arthrex is with you every step

Needs Assessment

We work with your team to understand your current setup, procedure mix, and visualization challenges

Installation & Setup

Full installation by certified Arthrex engineers — integrated into your existing OR infrastructure

Staff Training

Comprehensive in-servicing for surgeons, scrub techs, and nursing staff — hands-on, practical training

Ongoing Support

Dedicated field rep, 24/7 technical support, and regular system updates for the life of the equipment

Your success in the OR is our success.

Let's Transform Your OR Together

Take the next step with Synergy Vision

Schedule a Live Demo

See Synergy Vision in action in your OR or at an Arthrex facility

Hands-On Evaluation

Trial the system with your team before committing

Speak with a Specialist

Connect directly with an Arthrex surgical imaging expert

[Your Name] | Arthrex Surgical Imaging Specialist

helping surgeons treat their patients better

www.arthrex.com

Synergy Vision Key Features

Including Nano Vision™ Technology

True 4K Resolution

Ultra-high-definition imaging for unparalleled clarity and detail in every procedure

Nano Vision™

Breakthrough nano-scale optical technology delivering superior depth perception and color fidelity at the micro level

Near-Infrared Fluorescence

Real-time fluorescence imaging for perfusion assessment, bile duct ID, and lymph node mapping

3D Visualization

Stereoscopic depth perception for precise tissue identification and spatial awareness

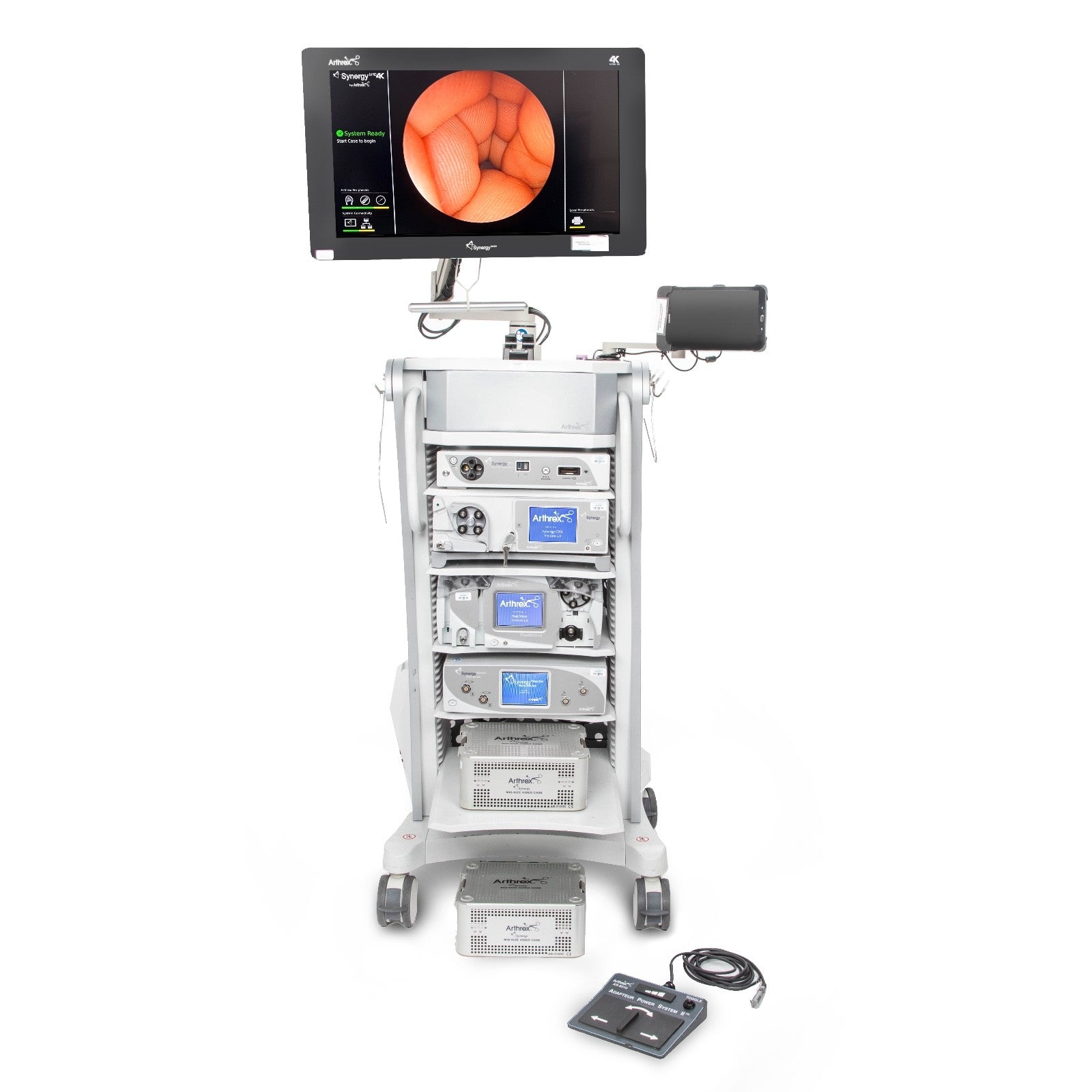

Integrated OR Tower

All-in-one system combining camera, light source, and recorder to streamline OR setup

Adaptive Illumination

Intelligent lighting that eliminates hot spots and shadows for consistent, uniform tissue visualization

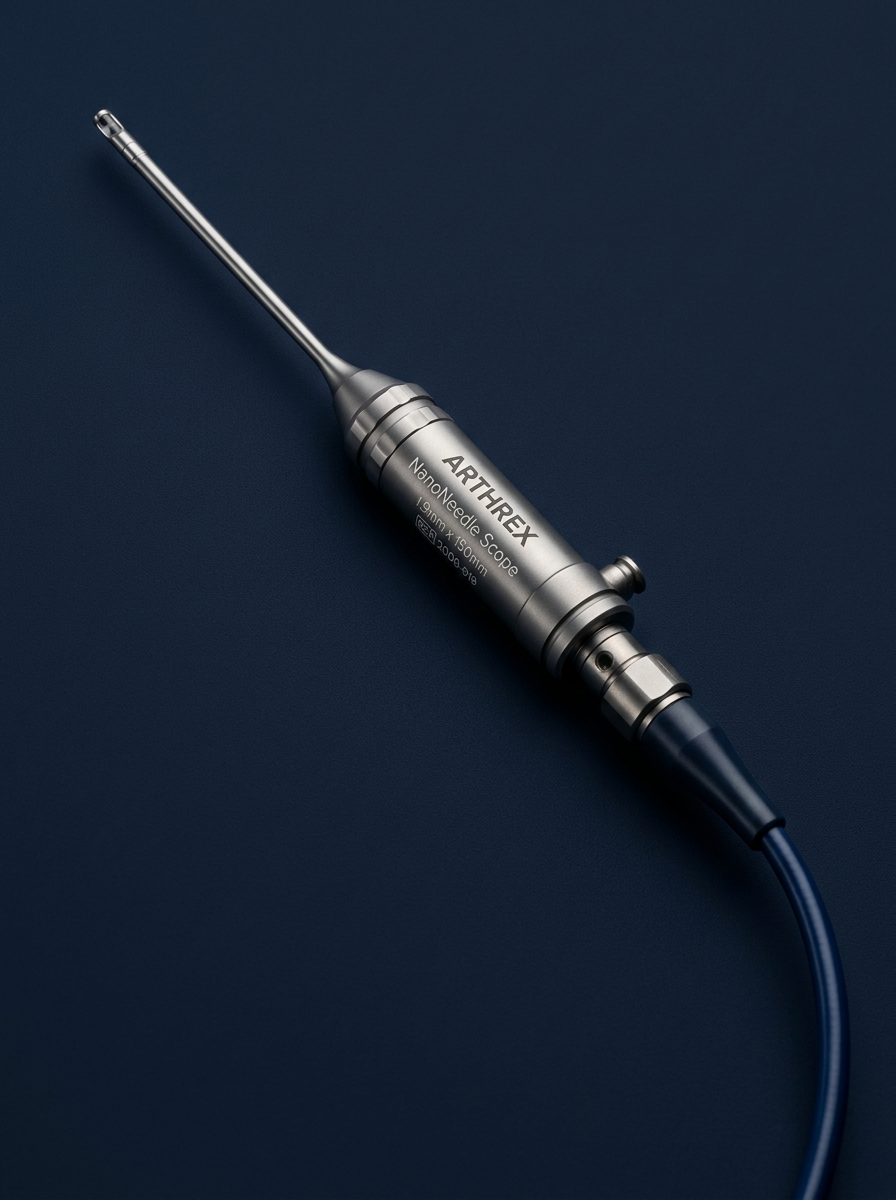

NanoNeedle™ Scope

1.9 mm Chip-on-Tip Technology

NANO VISION™

See More. Access More. Intervene Earlier.

The NanoNeedle Scope integrates directly into the Synergy Vision console as a primary or secondary camera — enabling simultaneous 4K and Nano visualization on the same screen.

Permanent Accessibility

Single-use sterile camera — always ready, no reprocessing required

Minimally Invasive

1.9 mm diameter for sutureless arthroscopy and easy access to tight joint spaces

Ergonomic Design

Well-balanced pencil-style grip for surgeon comfort and precision

Versatile

3 different lengths available for extended indications
